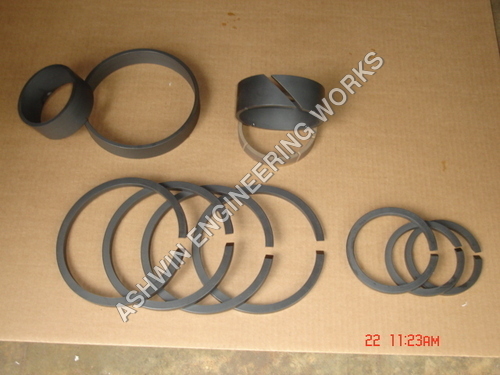

PTFE Compressor Components

PTFE Compressor Components
PTFE Compressor Components
Product Code : 22
Product Description

Backed by rich industry experience, we are able to manufacture and supply our range of PTFE Compressor Components. These components are cautiously engineered by using superior grade material that made them praised to be used in equipments. Our wide range comprise of compressor components, rod, compressor parts, tube and valves parts. Applicable in different chemical and mechanical sectors, these PTFE Compressor Components are safely delivered to our clients’ end.

Features:

  • Resistive against abrasion
  • Excellent flame resistance
  • Chemically inert
Further Details:

PT FE Characteristics & Benefits
The extraordinary characteristics of PT FE make it the ideal choice in a wide range of products and applications. PT FE has a coefficient of friction that is one of the lowest of any material. PT FE is extremely abrasion resistant, making it adaptable to the harshest environments. In addition, PT FE can withstand a wide range of temperatures, from 260 Degrees Centigrade down to -270 Degrees Centigrade, and can even handle brief exposures at higher temperatures. PT FE also has excellent flame resistance due to its extremely high melting point, along with a very low rate of smoke generation and heat release. Another advantage of PT FE is that it is chemically inert and pure, and has no additional stabilizers, lubricants or plasticizers that would taint process fluids.

PT FE products have an extremely long service life, primarily due to PT FE retaining its original properties over a long period of time, even at extreme temperatures, in ultraviolet (UV) light, and when exposed to oils, oxidizing agents and solvents. PT FE also is extremely corrosion resistant, especially to acids, and harsh inorganic and organic chemicals. Additionally, the original properties PT FE remain the same even after extended time periods in water. Furthermore, PT FE is resistant to atmospheric aging in the form of discoloration, oxidation, and, as previously noted, is not affected by ultraviolet light Top op

PT FE Properties

Properties

ATM
Method

Units

Virgin PT FE

Reprocessed
PT FE

25% Glass
PT FE

Specific Gravity

D792


2.14-2.20

2.15-2.20

220-230

Tensile Strength

D638

PSI

1500-3500

1500-2400

2000-3000

Tensile Strength

D638

PSI

1500-3500

1500-2400

2000-3000

Elongation

D638

%

250-350

75-200

100-260

Hardness

D1700

Durometer "D"

50-60

N/A

55-65

Deformation %
73 0 F, 1500 psi, 24 hours

D621

N/A

4-8

N/A

1.73

Deformation %
100 0 F, 1500 psi, 24 hours

D621

N/A

10-18

N/A

1.91

Deformation %
200 0 F, 1500 psi, 24 hours

D621

N/A

20-25

N/A

4.57

Impact Strength,
Izod
730 0 F Average
170 0 F Average

D256

Ft./Lb./In.

3.00
6.00

N/A

2.54
3.69

Water Absorption

D570

%

0.001

N/A

0.013

Coefficient of Friction
(Static) 73 0 F

*3

N/A

0.04

N/A

0.085

Dielectric Constant
(100 CPS)

D150

N/A

2.00

2.26

2.4

Dielectric Strength (4) (air)

D257

Volts

1000

450

235

Coefficient of Thermal Expansion 73 0 F

D696

In./In./Ft.

5.5 x 10.3

N/A

2.75 x 10.3

Coefficient of Thermal Conductivity

*5

Btu/hr/ftz

1.7

N/A

3.12

PV at 900 ft./min

N/A

N/A

2500

N/A

15,000

Color

*6

N/A

white

off white

brownish white
